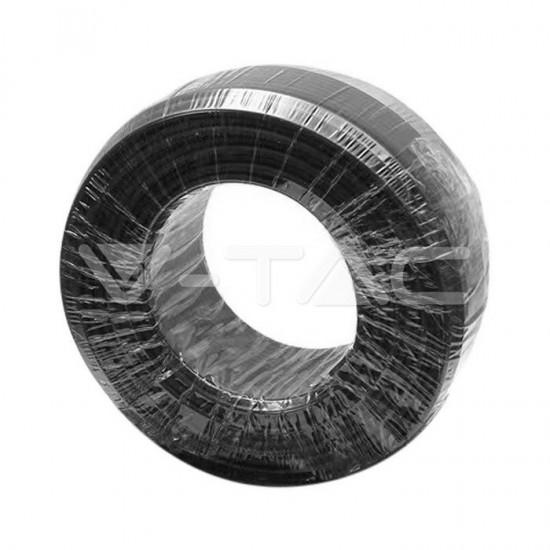

Φ/Β Καλώδιο 4SQ μαύρο

• Conductor: Stranded tinned copper
• Size: 4mm²
• Stranding: 56/0.285±0.01mm
• Diameter: 2.4mm
• Primary Insulation: XLPE
• Minimum Average Thickness: 0.7mm
• Color: Black
• Secondary Insulation: XLPE
• Outer Diameter: 5.5±0.15mm

Electrical Characteristics

• EN 50618/IEC 62930: AC: 1000V; DC: Max.1500V
• Ambient Temperature: -40°C up to 90°C
• At 20℃ Insulation Resistance: ≥ 709 MΩ.km
• Current carrying capacity AT 30℃: 57A
• Spark test: 10000 VAC
• Voltage Withstand: 6500 VAC
• Conductor Resistance AT 20℃: ≤5.09 Ω/km
