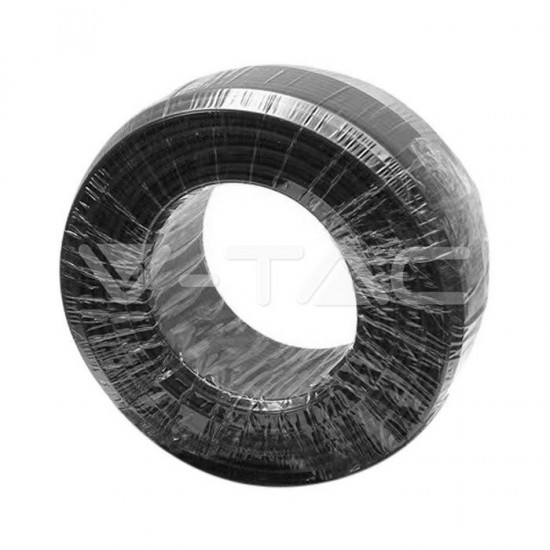

Φ/Β Καλώδιο 6SQ μαύρο

• Conductor: Stranded tinned copper
• Size: 6mm²
• Stranding: 84/0.285±0.01mm
• Diameter: 3.0mm
• Primary Insulation: XLPE
• Minimum Average Thickness: 0.7mm
• Color: Black
• Secondary Insulation: XLPE
• Outer Diameter: 6.1±0.2mm

Electrical Characteristics

• EN 50618/IEC 62930: AC: 1000/1000V; DC: Max.1500V
• Ambient Temperature: -40°C up to 90°C
• At 20℃ Insulation Resistance: ≥ 610 MΩ.km
• Current carrying capacity AT 30℃: 72A
• Spark test: 10000 VAC
• Voltage Withstand: 6500 VAC
• Conductor Resistance AT 20℃: ≤3.39 Ω/km
